Explore V-Series

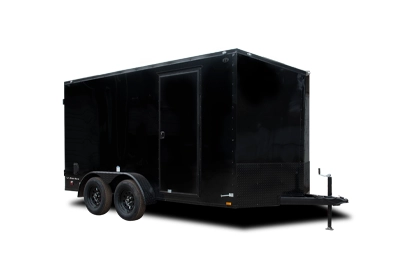

V-Series trailers range in size from a 5’ x 8’ single axle to a 8’ x 20’ tandem axle model. They feature an 18" front wedge for extra storage space and easier towing. The 5’ - 6’ wide models offer a standard payload capacity from 1,200 - 5,400 lb. while the 7’ - 8’ wide models offer a capacity of 1,900 - 3,900 lb. Double Barn doors are the standard rear door for the V-Series cargo trailers with an optional ramp door available.
.jpg)
.jpg)
.jpg)
 copy.webp)
 copy.webp)
 copy.webp)
 copy.webp)
 copy.webp)
 copy.webp)
 copy.webp)
 copy.webp)
 copy.webp)
 copy.webp)
-

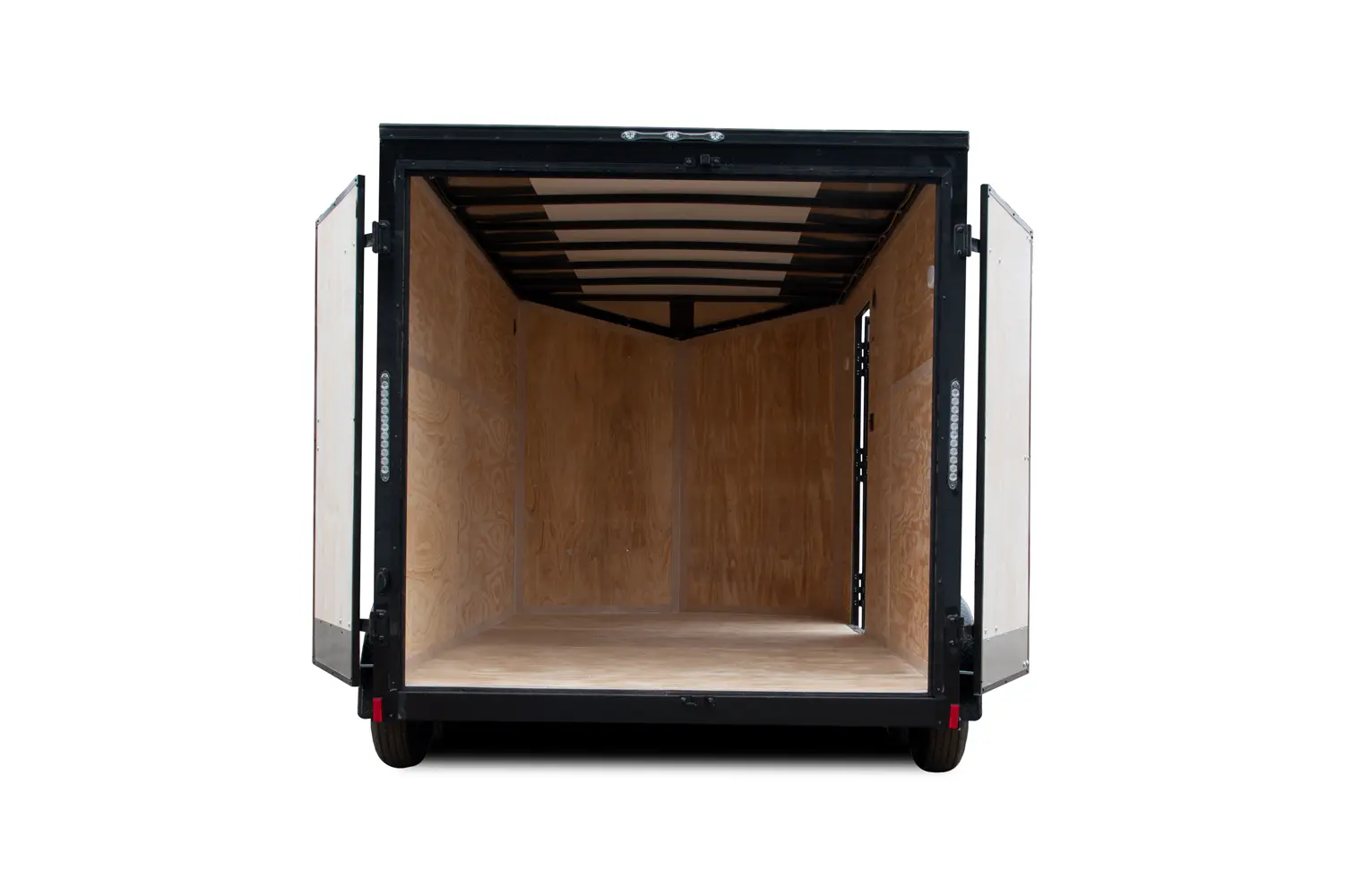

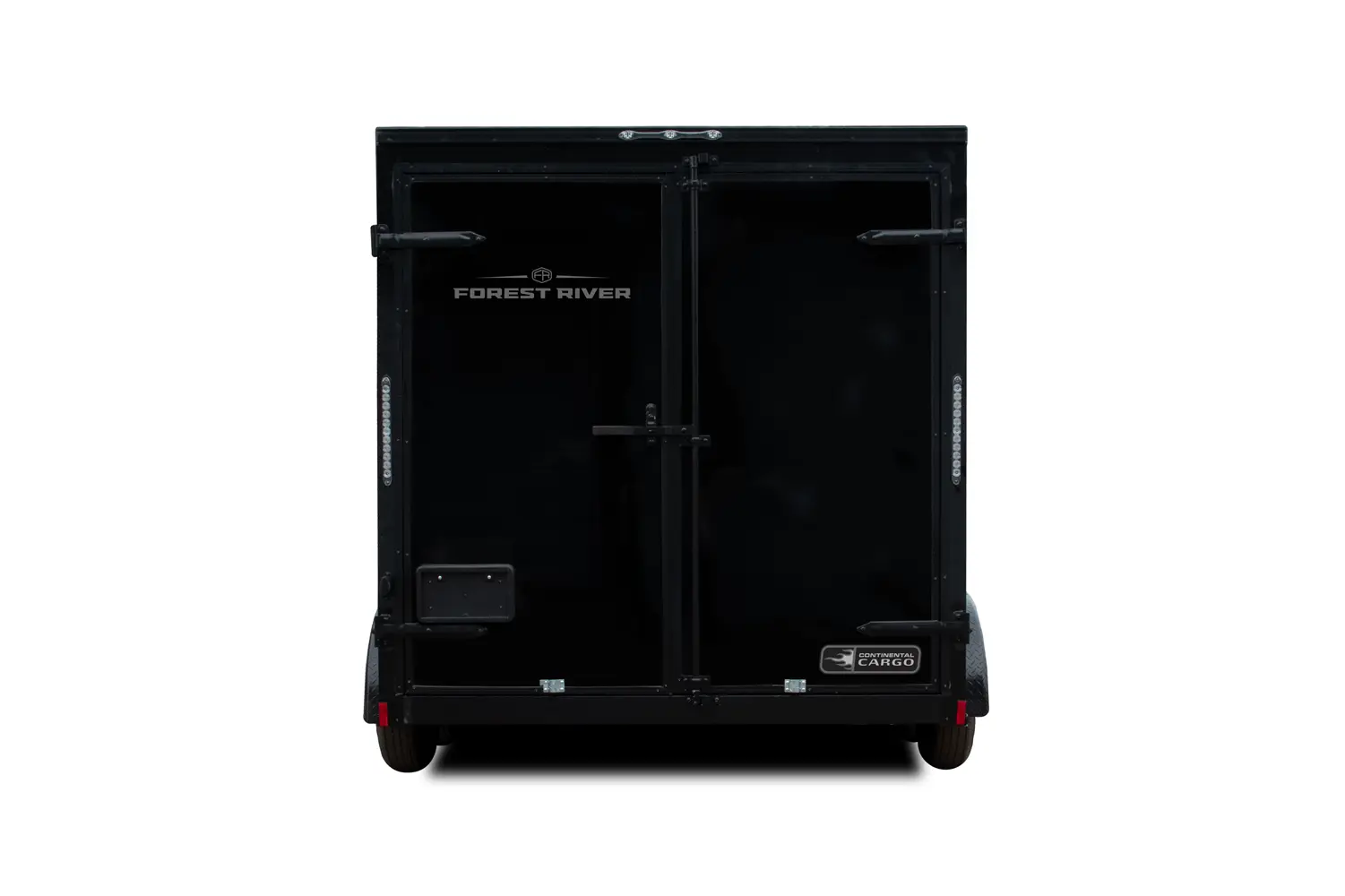

- Double Rear Doors
- 18" Wedge-Front Nose

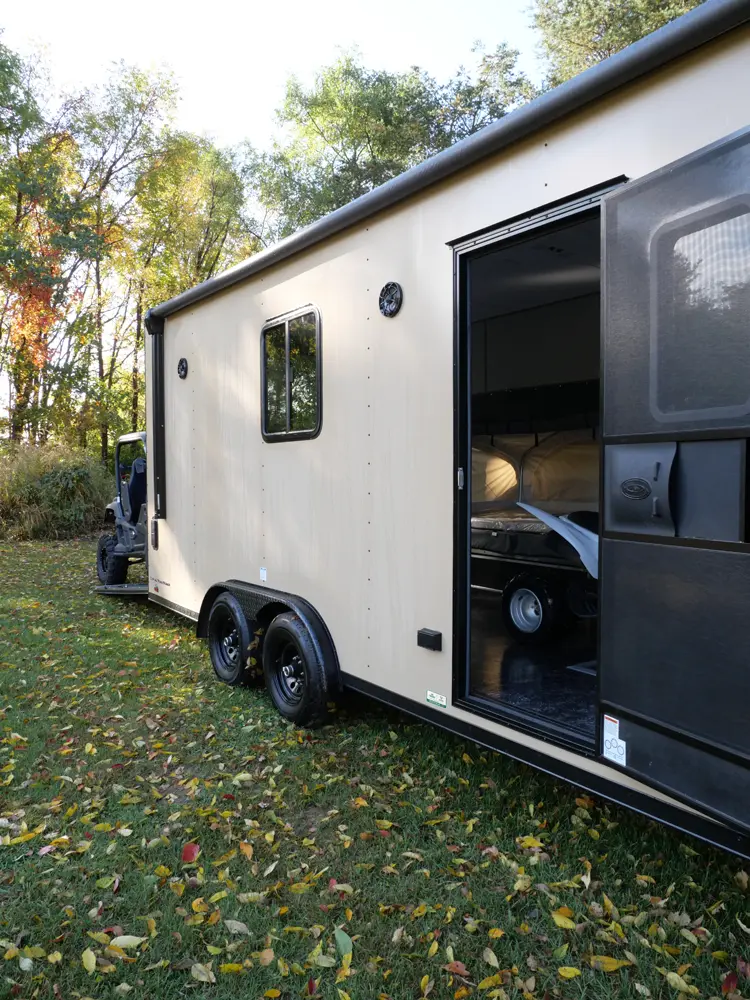

- C/S Door (24" on 5 wide, 32" on6 & 7 wide, 36" on 8 wide)
- Semi-Style Camlock Door Latch
- Door Hold-Back on Rear Door
- Leaf-Spring Axle
- E-Z Lube Hubs
- Steel Powder Coated Wheels
- Radial Tires
- One-Piece Aluminum Roof (16" O/C)
- Aluminum Top Rails
- 16" ATP Stoneguard
- 1 – 12V LED Dome Light
- 2 - Flow Thru Sidewall Vents (on 5,6,7, & 8 wides)
- Aluminum Exterior Fenders
- Clear Lens LED Clearance Lights
- Clear Lens LED Strip Tail Lights
- DOT Lighting
- License Plate Holder with Light
- .030 Aluminum Exterior
- Anodized Aluminum Wrap
- Exposed Steel Painted Epoxy Black
- Tongue Jack w/ Sand Pad
- Welded Safety Chains
- Full-Color Decals
- ***Flat Front w/ Anodized Corners in place of of 18" Wedge Available
- 102" Wide Body Design

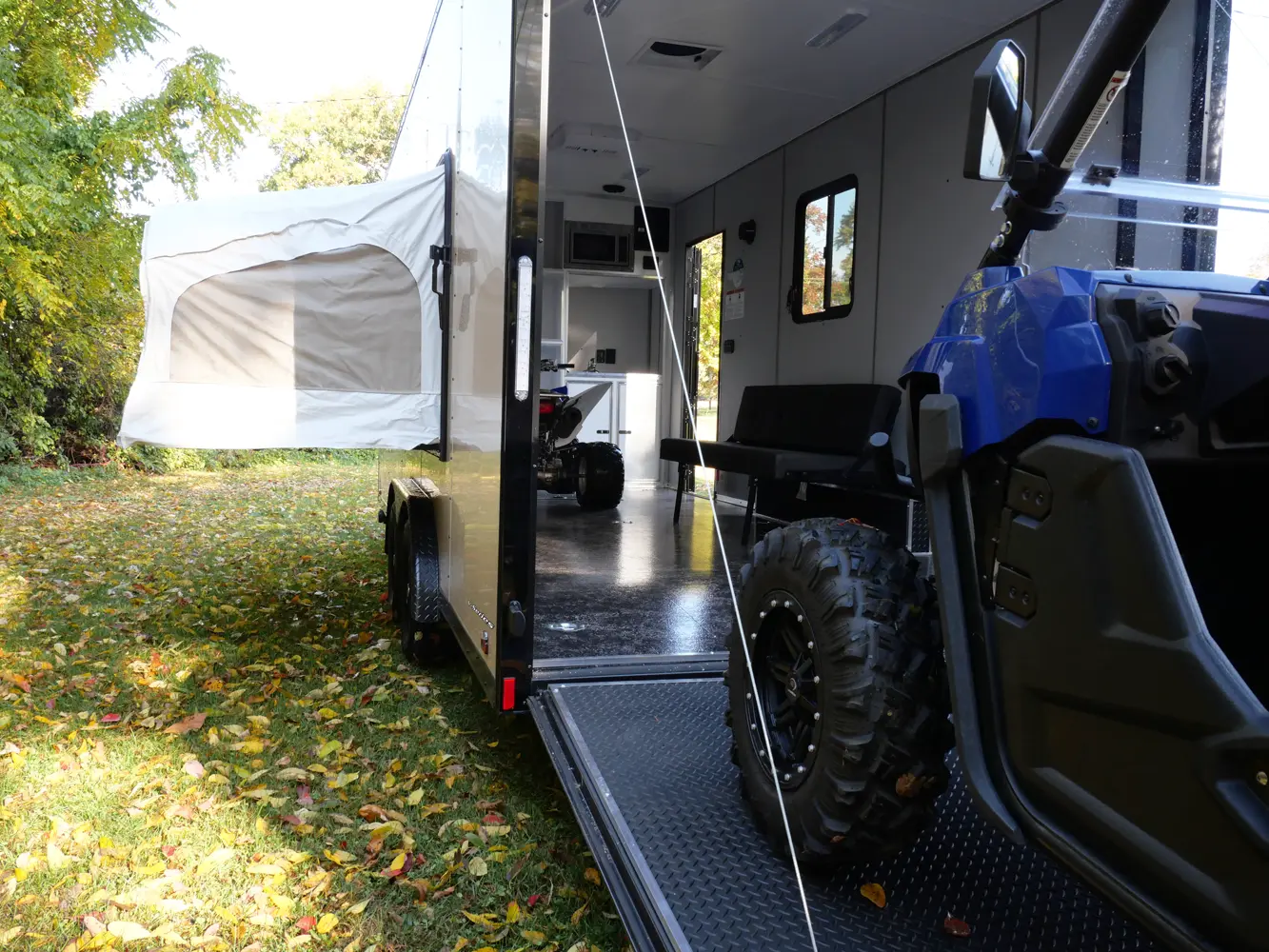

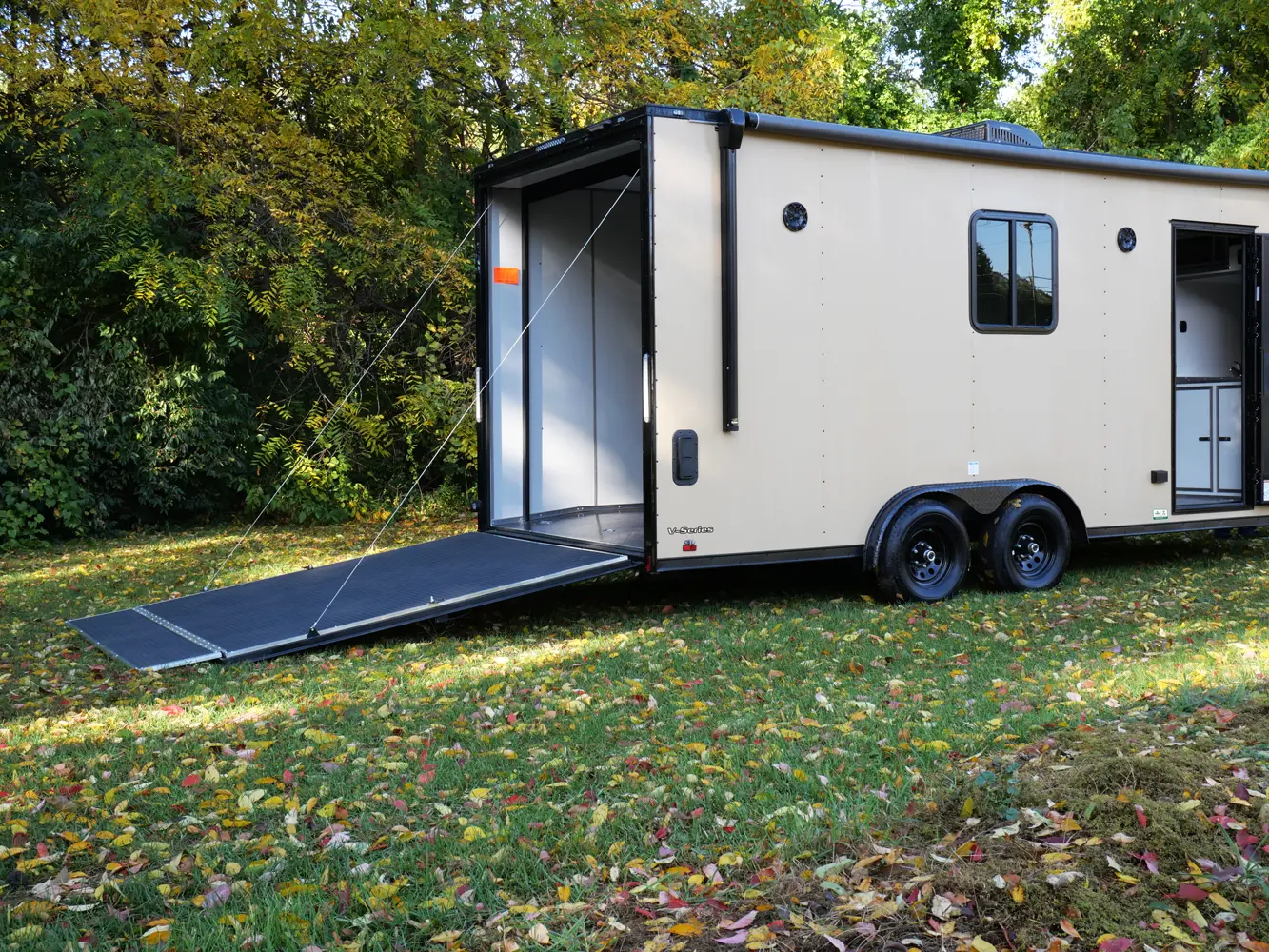

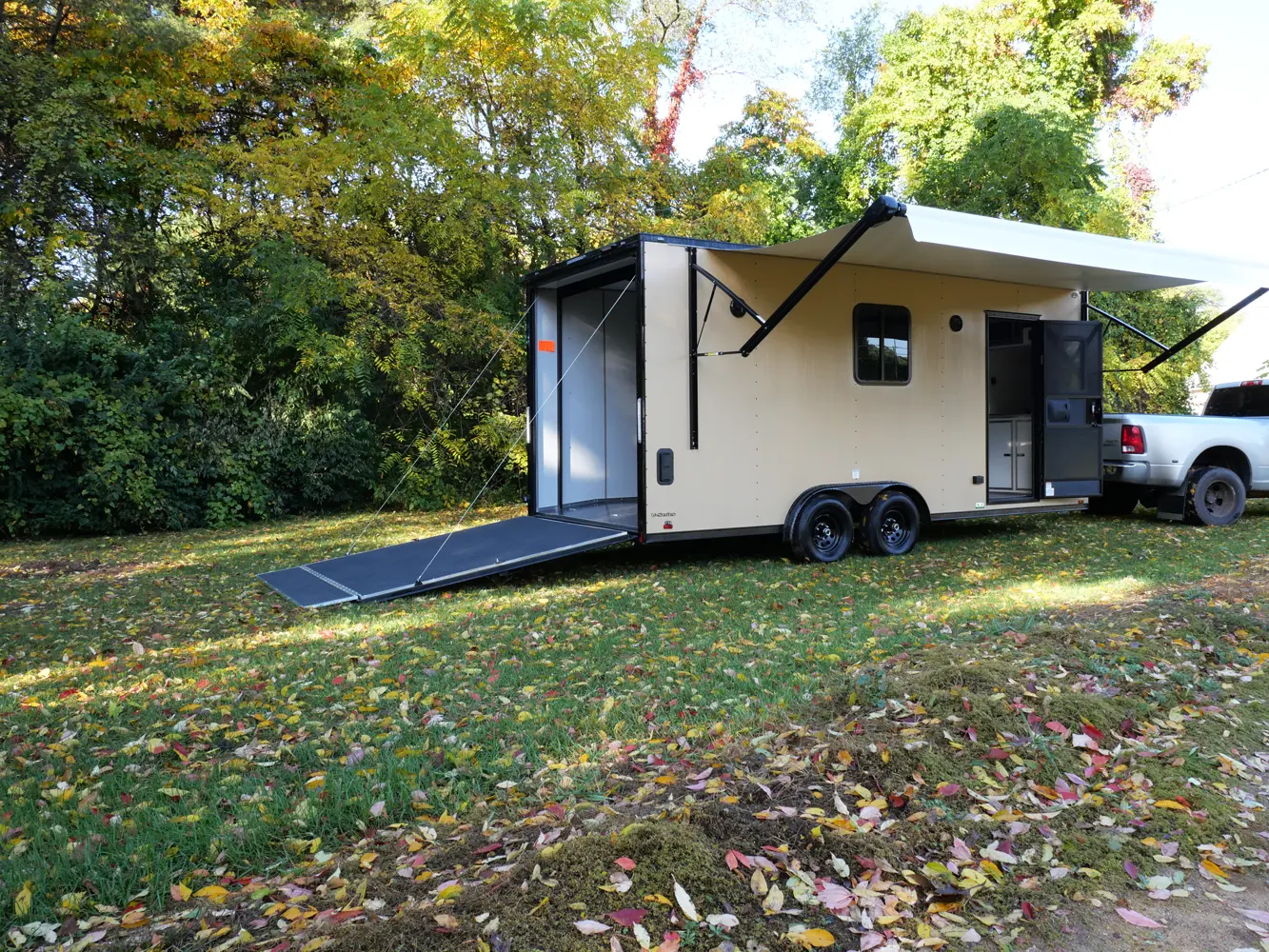

- Ramp Door with Spring Assist
- No-Show Beavertail

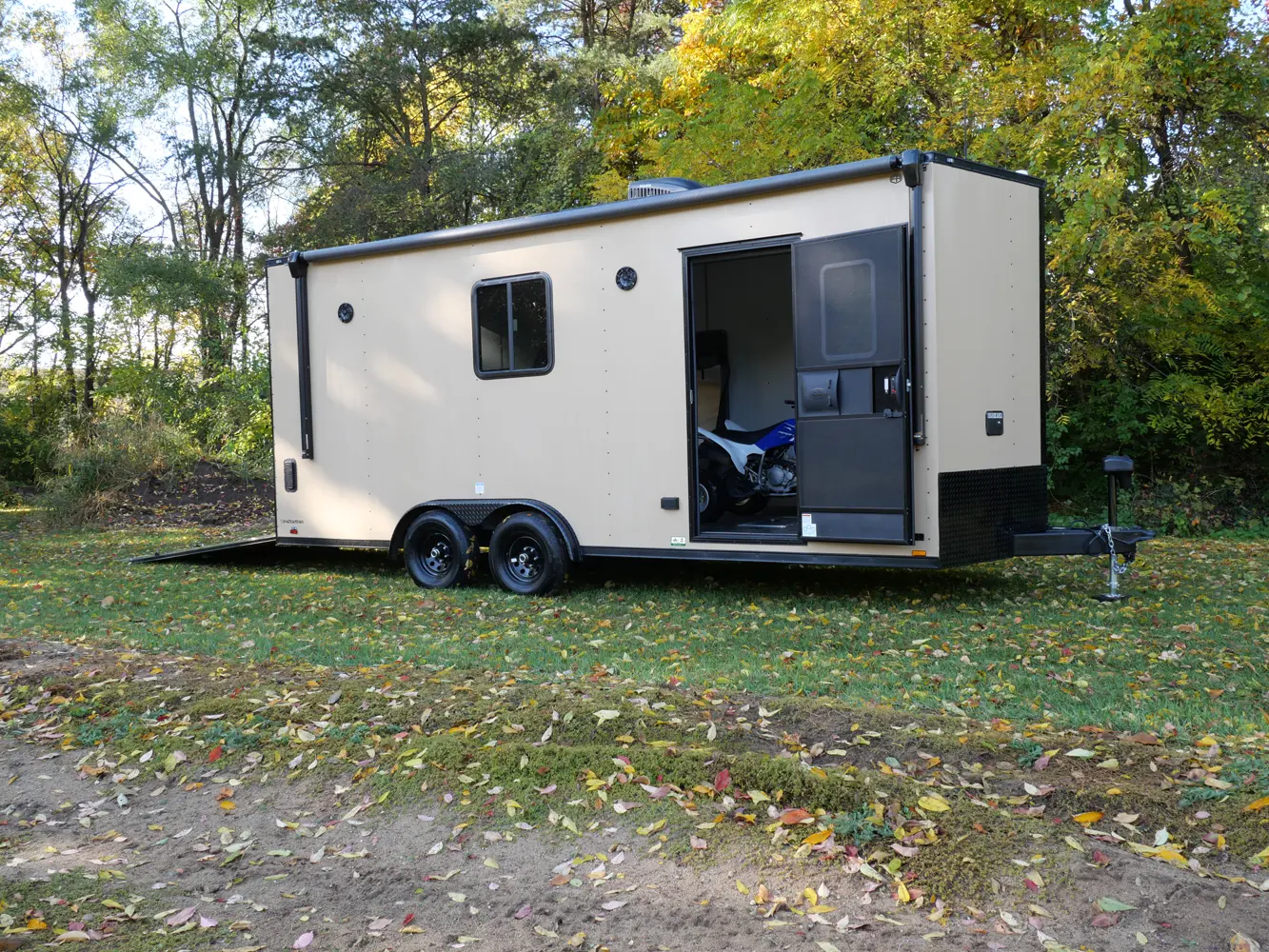

- 36" Side Door with Steel Step
- 2-12 Volt LED Dome Lights
- 1-12 Volt Switch
- 1-Roof Vent
Specifications
| VHW510SA | VHW58SA | VHW610SA | VHW612SA | VHW612TA2 | VHW712SA | VHW712TA2 | VHW714TA2 | VHW716TA2 | VHW816TA2 | VHW820TA2 | VHW8518TA2 | VHW8520TA2 | VHW8522TA2 | VHW8524TA2 | VHW8526TA3 | |
| GVWR: | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 7000 lb. | 3500 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 9800 lb. |
| Payload Capacity: | 1890 | 2100 | 1790 | 1690 | 5400 | 1900 | 5150 | 5050 | 4900 | 4500 | 3900 | 3930 | 3800 | 3670 | 3540 | 5700 |
| Exterior Length: | 13' 10" | 11' 10" | 13' 10" | 15' 10" | 15' 10" | 15' 10" | 15' 10" | 17' 10" | 19' 10" | 19' 10" | 23' 10" | 21' 10" | 23' 10" | 25' 10" | 27' 10" | 29' 10" |
| Exterior Width: | 6' 10" | 6' 10" | 7' 10" | 7' 10" | 7' 10" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" |
| Exterior Height: | 6' 6" | 6' 7" | 7' 6" | 7' 6" | 8' 1" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" |
| Interior Length: | 11' 2" | 9' 2" | 11' 2" | 13' 2" | 13' 2" | 13' 1" | 13' 1" | 15' 1" | 17' 1" | 17' 1" | 21' 1" | 19' 1" | 21' 1" | 23' 1" | 25' 1" | 27' 1" |
| Interior Width: | 4' 8" | 4' 8" | 5' 9" | 5' 9" | 5' 9" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 7' 6" | 7' 6" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" |
| Interior Height: | 4' 11" | 4' 11" | 5' 11" | 5' 11" | 6' 5" | 6' 1" | 6' 1" | 6' 1" | 5' 11" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 2" |
| Rear Door Type: | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Ramp | Ramp | Ramp | Ramp | Ramp |
| Rear Door Width: | 3' 11" | 3' 11" | 4' 11" | 4' 11" | 4' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 6' 9" | 6' 9" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" |
| Rear Door Height: | 4' 5" | 4' 4" | 5' 5" | 5' 5" | 5' 11" | 5' 7" | 5' 7" | 5' 7" | 5' 5" | 5' 11" | 5' 11" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" |
| Coupler Size: | 2" | 2" | 2" | 2" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" |
| Curb Weight: | 1110 | 890 | 1200 | 1300 | 1600 | 1600 | 1850 | 1950 | 2100 | 2500 | 3100 | 3070 | 3200 | 3330 | 3460 | 4100 |
| Hitch Weight: | 110 | 90 | 120 | 130 | 160 | 160 | 185 | 200 | 216 | 250 | 310 | 310 | 320 | 330 | 340 | 410 |
| Hitch Height: | 16" | 16" | 16" | 16" | 17" | 18" | 18" | 18" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 22" |
| Platform Height: | 17 | 17 | 17 | 17 | 18 | 19 | 19 | 19 | 21 | 21 | 21 | 18 | 18 | 18 | 18 | 20 |
| Axle: | 1-2,990 | 1-2,990 | 1-2,990 | 1-2,990 | 2-3,500 | 1-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-5,200 |
| Suspension: | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring |
| Brakes: | Optional | Optional | Optional | Optional | Standard | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Tires: | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST225/75R15/D |
| Wheels: | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 6 Bolt |
| Main Frame: | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 4" Tube | 4" Tube | 4" Tube | 4" Tube | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 8" I-Beam |
| Floor (16" O/C): | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood |
| Walls (16" O/C): | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood |
