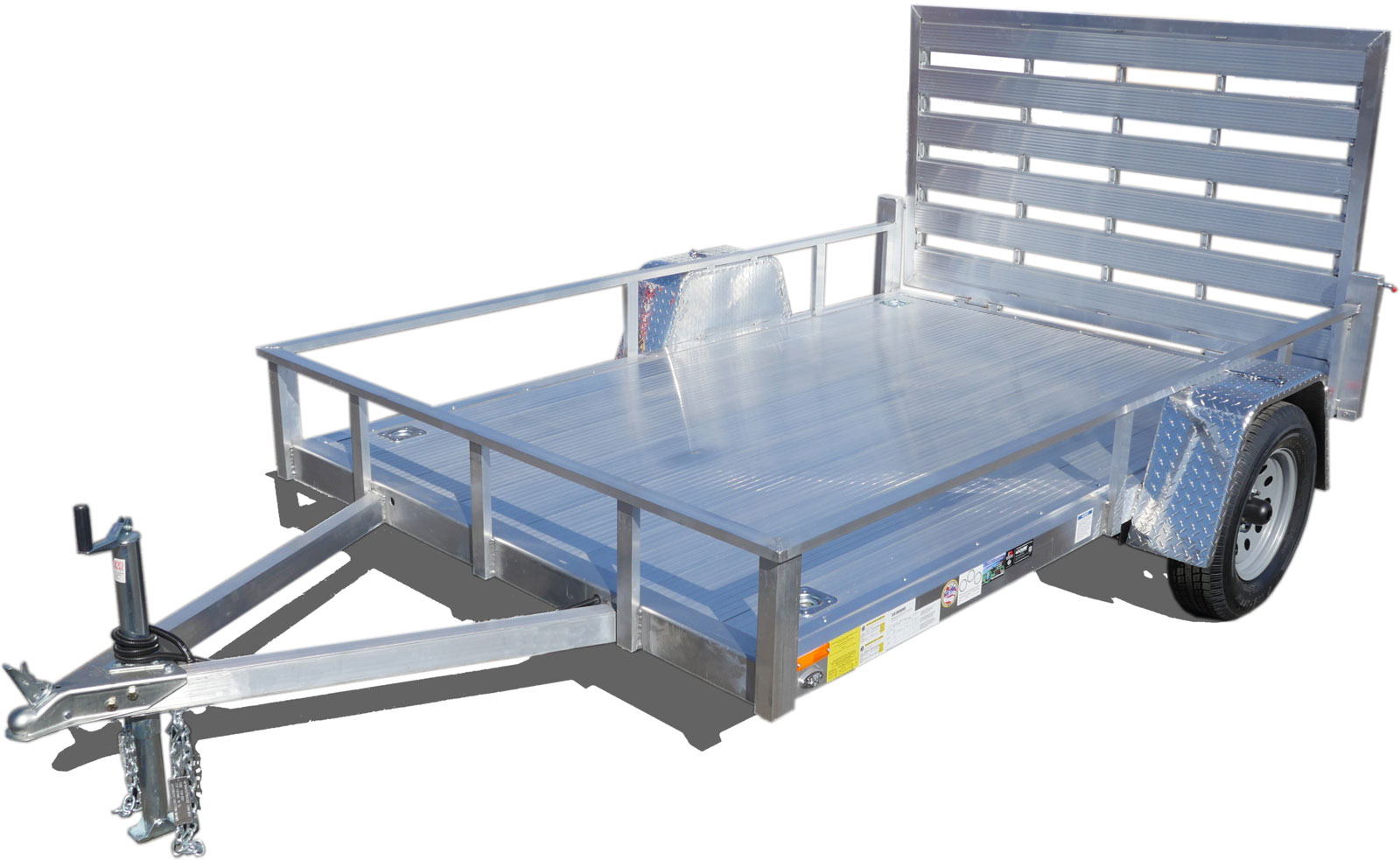

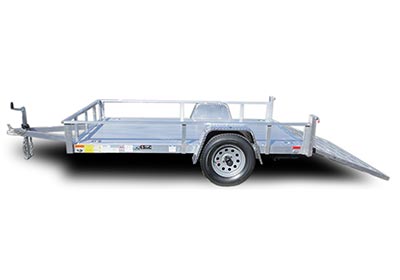

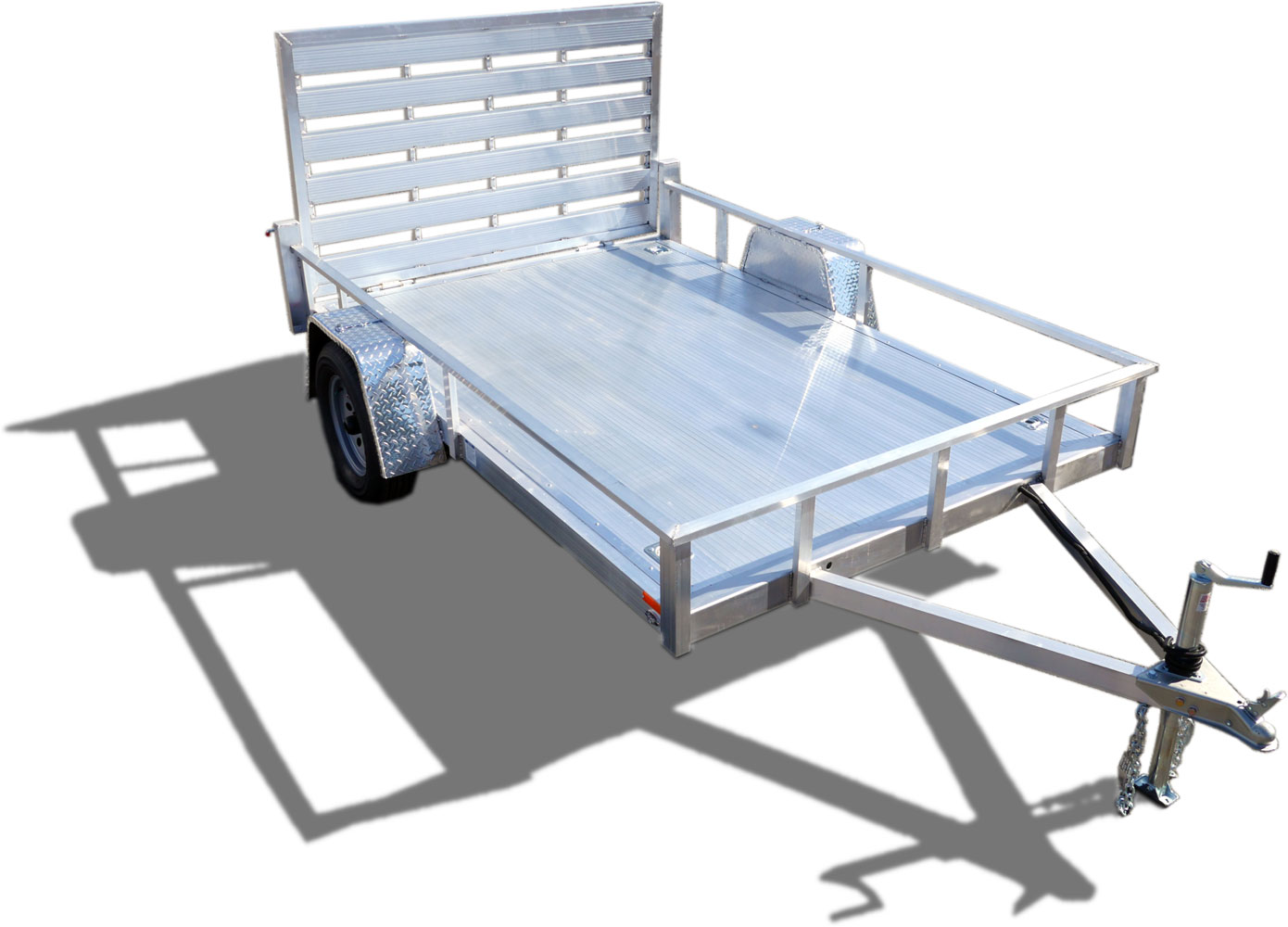

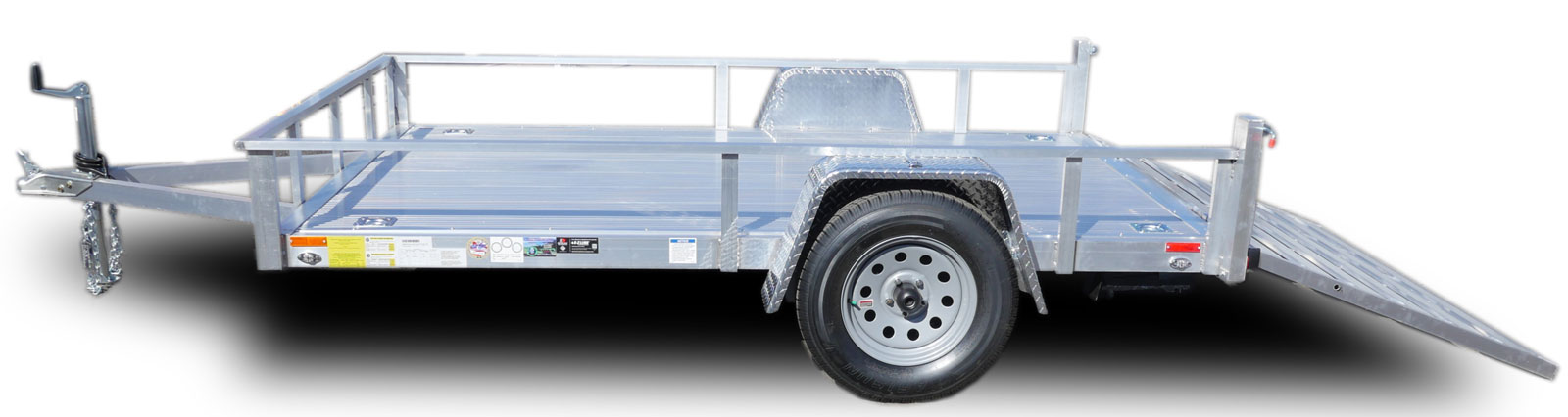

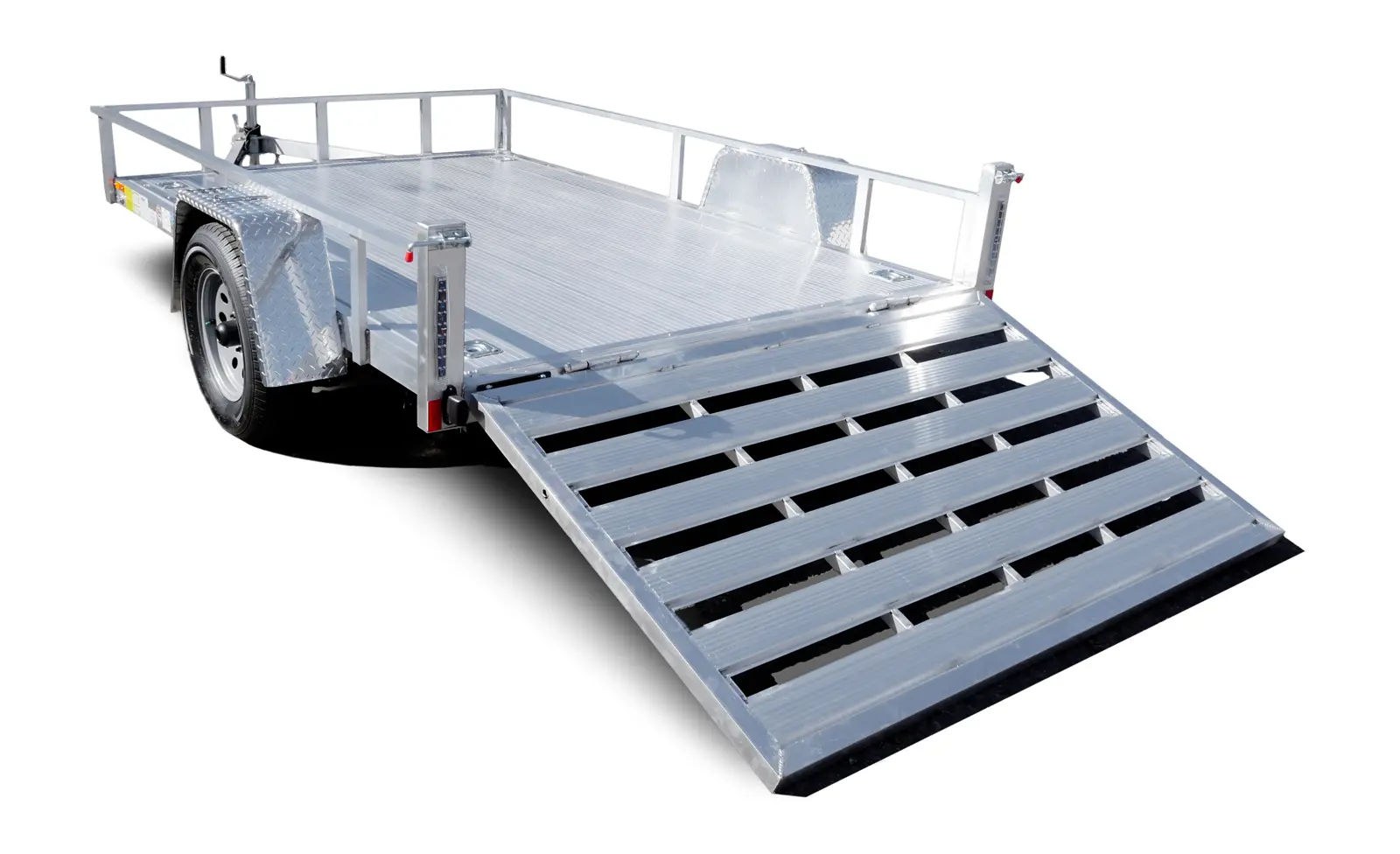

Explore Open Aluminum Utility Trailer
Open Aluminum trailers range in size from a 5’ x 8’ single axle to 7’ x 18’ tandem axle car hauler. The standard payload capacities range from 1,800 to 5,985 lb. with open utility trailers and 5,400 lb. on the 7’ x 18’ open car hauler. The standard flooring is constructed from 5/4 x 6" treated wood planks.
-
- Spare Tire Carrier with Cover (Tongue Mount)
- Fold-Down Stabilizer Jacks (1,000 lb. Capacity)
- Extruded Aluminum Floor
- ST205/75D15 Spare Tire with 5-Bolt Silver Wheel
- Aluminum Wheel with Center Cap and Lug Nuts (5-Bolt; 3.500 lb.)
- Motorcycle Wheel Chocks (Removable, Shipped Loose)
- Recessed Floor-Mount D-Ring Tie-Down (Installed)
- Mesh Enclosed Sides
- ATP Enclosed Sides
- 48" Side Ramp Gate
- 60" Side Ramp Gate
- Reinforce Existing Standard Rear Ramp Door
Specifications
| CCOA510SA | CCOA58SA | CCOA6510SA | CCOA6512SA | CCOA6514SA | CCOA6514TA2 | CCOA6516TA2 | CCOA6518TA2 | |
| GVWR: | 2990 lb. | 2990 lb. | 2990 lb. | 2290 lb. | 2990 lb. | 7000 lb. | 7000 lb. | 7000 lb. |
| Payload Capacity: | 2390 | 2440 | 2290 | 2240 | 2190 | 5985 | 5840 | 5695 |
| Exterior Length: | 14' 0" | 12' 0" | 14' 0" | 16' 0" | 18' 0" | 18' 0" | 20' 0" | 22' 0" |
| Exterior Width: | 6' 10" | 6' 10" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" |
| Exterior Height: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Interior Length: | 10' 0" | 8' 0" | 10' 0" | 12' 0" | 14' 0" | 14' 0" | 16' 0" | 18' 0" |
| Interior Width: | 5' 0" | 5' 0" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" |
| Interior Height: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Rear Door Type: | Removable Ramp | Removable Ramp | Removable Ramp | Removable Ramp | Removable Ramp | Removable Ramp | Removable Ramp | Removable Ramp |
| Rear Door Width: | 5' 0" | 5' 0" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" |
| Rear Door Height: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Coupler Size: | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2" |
| Curb Weight: | 600 | 550 | 700 | 750 | 800 | 1015 | 1160 | 1305 |
| Hitch Weight: | 60 | 55 | 70 | 75 | 80 | 90 | 100 | 115 |
| Hitch Height: | 17" | 17" | 17" | 17" | 17" | 18" | 18" | 18" |
| Platform Height: | 19 | 19 | 19 | 19 | 19 | 20 | 20 | 20 |
| Axle: | Single Leaf Spring | Single Leaf Spring | Single Leaf Spring | Single Leaf Spring | Single Leaf Spring | Tandem Leaf Spring | Tandem Leaf Spring | Tandem Leaf Spring |
| Suspension: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Brakes: | Optional | Optional | Optional | Optional | Optional | Electric | Electric | Electric |
| Tires: | ST205/75D15 | ST205/75D15 | ST205/75D15 | ST205/75D15 | ST205/75D15 | ST205/75D15 | ST205/75D15 | ST205/75D15 |
| Wheels: | 5-Bolt | 5-Bolt | 5-Bolt | 5-Bolt | 5-Bolt | 5-Bolt | 5-Bolt | 5-Bolt |
| Main Frame: | 4" Tube | 4" Tube | 4" Tube | 4" Tube | 4" Tube | 5" Tube | 5" Tube | 5" Tube |
| Floor (16" O/C): | Treated 5/4 x 8" Planks | Treated 5/4 x 8" Planks | Treated 5/4 x 8" Planks | Treated 5/4 x 8" Planks | Treated 5/4 x 8" Planks | Treated 5/4 x 8" Planks | Treated 5/4 x 8" Planks | Treated 5/4 x 8" Planks |
| Walls (16" O/C): | 15″ Side Rails | 15″ Side Rails | 15″ Side Rails | 15″ Side Rails | 15″ Side Rails | 15″ Side Rails | 15″ Side Rails | 15″ Side Rails |
