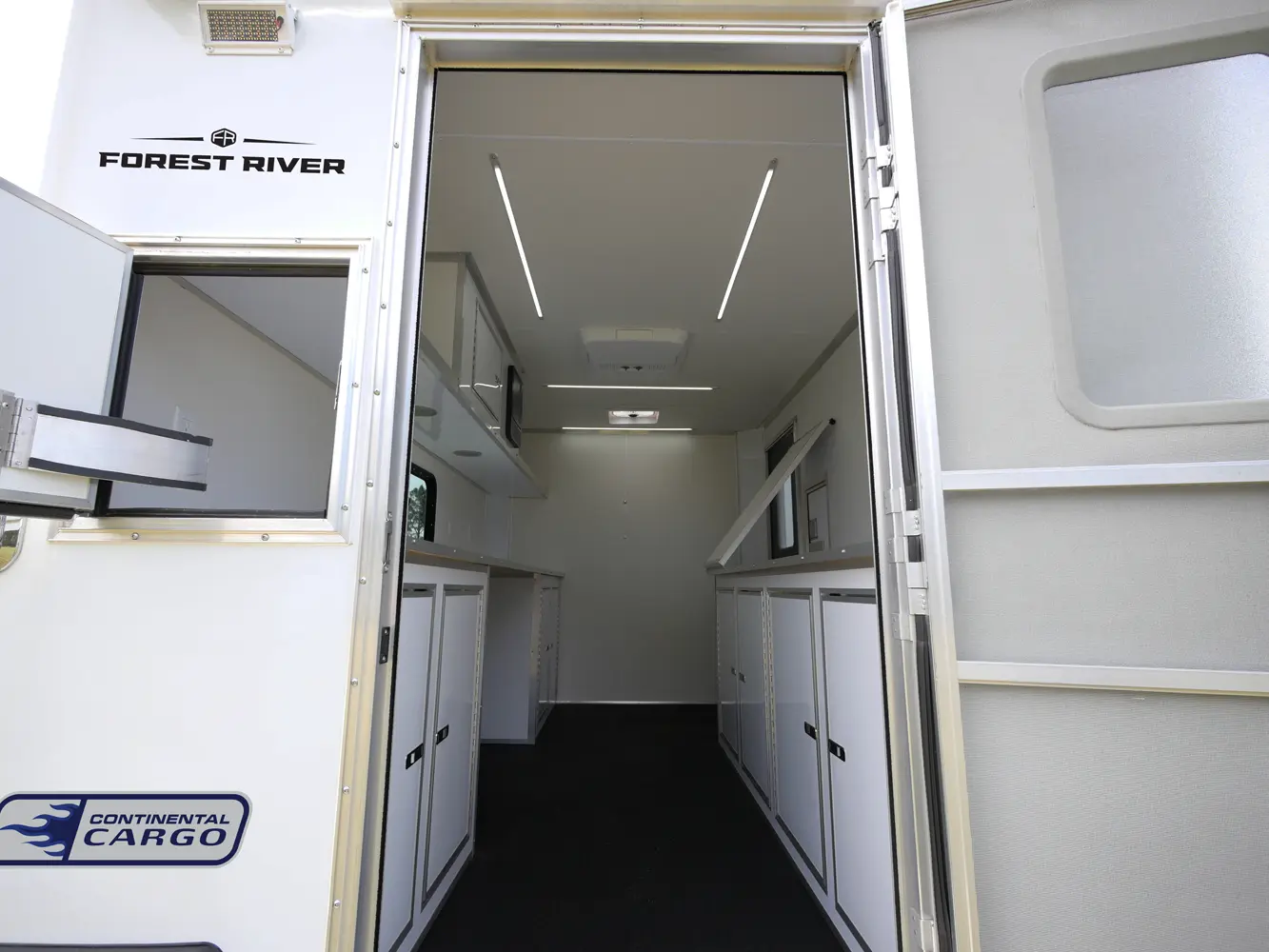

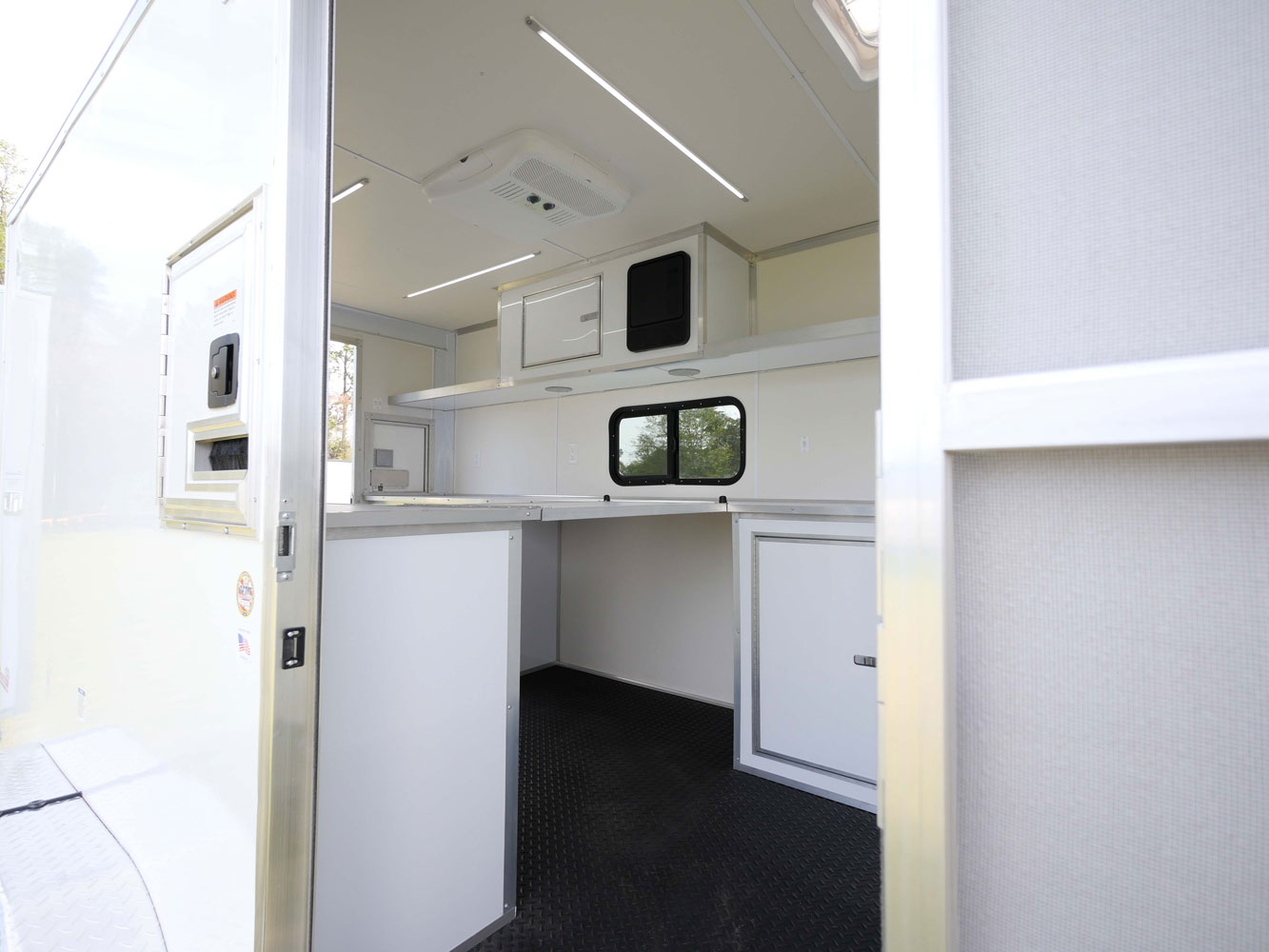

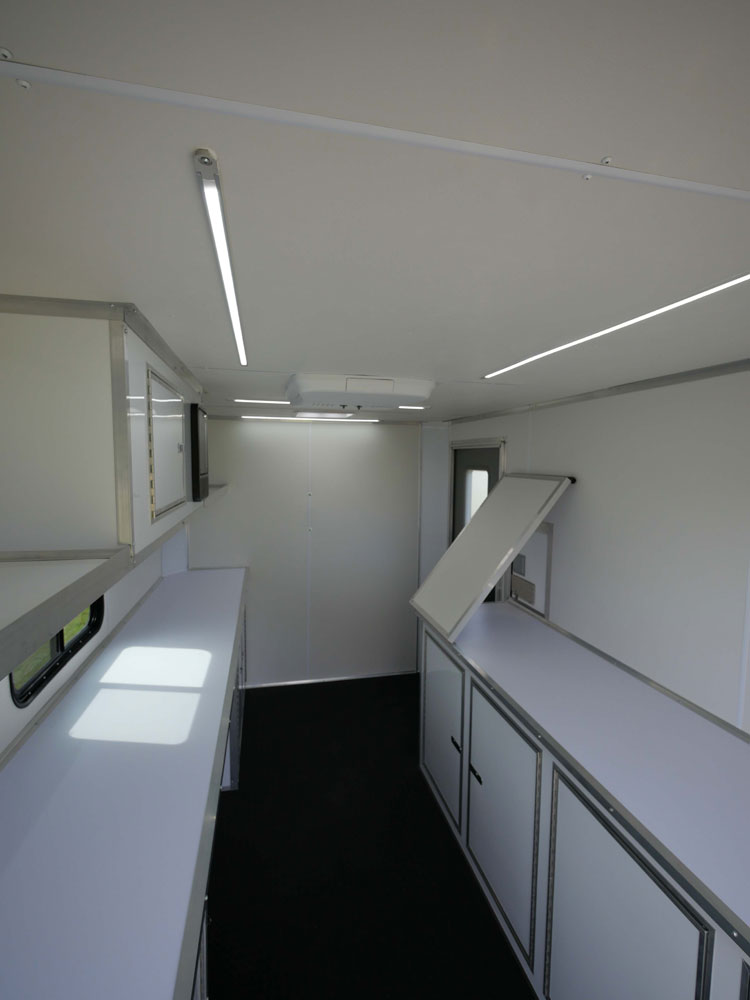

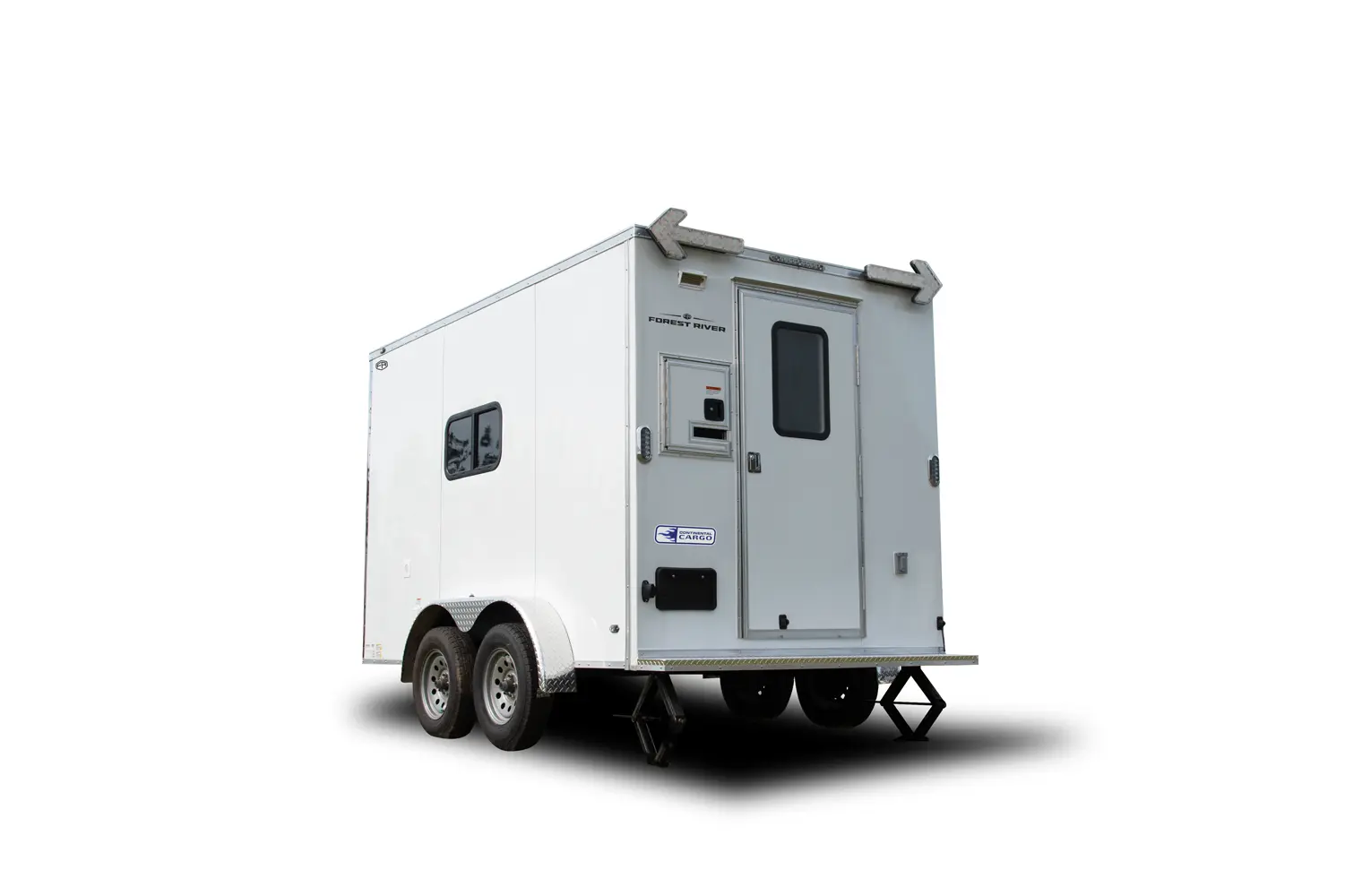

The Continental Cargo Fiber Optic Splicing Trailer is a flagship fiber optic splicing trailer trusted by leading communication companies to meet the demand for safety and durability while also providing reliable, long-lasting value and security in the field. Continental Cargo comes with Industry leading standards. This begins with aluminum or steel frame construction and premium craftsmanship. The spacious interior of the Fiber Optic Splicing Trailer allows for plenty of cabinet storage, counter space, and lighting. Neat and smooth finishes make cleaning and maintenance easy, and heating and cooling options create a comfortable working environment no matter what the weather throws at you.

VIEW THE TOP REASONS TO BUY CONTINENTAL CARGO

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:VHW712TA2
GVWR:7000 lb.
Payload Capacity:5150 lb.
Exterior Length:15' 10"
Exterior Width:8' 6"
Exterior Height:8' 0"
Interior Length:13' 1"
Interior Width:6' 8"
Interior Height:6' 1"
Rear Door Type:Single
Rear Door Width:5' 11"
Rear Door Height:5' 7"
Coupler Size:2-5/16"
Curb Weight:1850 lb.
Hitch Weight:185 lb.
Hitch Height:18"
Platform Height:19"
Axle:2 - 3500 lb.
Brakes:Electric
Tires:ST205/75R15/C
Wheels:5 Bolt
Main Frame:6" Tube
Floor:3/4" Plywood
Walls:3/8" Plywood

Features & Options

Print
  • Double Rear Doors
  • 18" Wedge-Front Nose
  • C/S Door (24" on 5 wide, 32" on6 & 7 wide, 36" on 8 wide)
  • Semi-Style Camlock Door Latch
  • Door Hold-Back on Rear Door
  • Leaf-Spring Axle
  • E-Z Lube Hubs
  • Silver Powder Coated Wheels
  • Radial Tires
  • Galvanized Roof
  • Aluminum Top Rails
  • 16" ATP Stoneguard
  • 1 – 12V LED Dome Light
  • 2 - Flow Thru Sidewall Vents (on 5,6,7, & 8 wides)
  • Aluminum Exterior Fenders
  • Clear Lens LED Clearance Lights
  • Clear Lens LED Strip Tail Lights
  • DOT Lighting
  • License Plate Holder with Light
  • .030 Aluminum Exterior
  • Anodized Aluminum Wrap
  • Exposed Steel Painted Epoxy Black
  • Tongue Jack w/ Sand Pad
  • Welded Safety Chains
  • Full-Color Decals
  • ***Flat Front w/ Anodized Corners in place of of 18" Wedge Available
8' 6" Wides Include
  • 102" Wide Body Design
  • Ramp Door with Spring Assist
  • No-Show Beavertail
  • 36" Side Door with Steel Step
  • 2-12 Volt LED Dome Lights
  • 1-12 Volt Switch
  • 1-Roof Vent
  • 60" Extended Triple Tube Tongue
  • Bead Board Insul (Styrofoam)
  • Insulated Ceiling w/ 3/16" White Vinyl Liner
  • 15,000 BTU Roof-Mt Air Cond w/ Heat Strip
  • 12 Volt LED/110-Volt Pkg w/ 30-Amp Power Center
  • All 110-Volt Packages require a finished ceiling
  • (4) 40" Led Strip Lights (1) Wall Switch
  • (2) Interior Wall Recepts
  • 30-Amp Motorbase Plug
  • 3/16" White Vinyl Wall Liner
  • Torsion Rubber Ride Axle Upgrade(Per Axle)
  • 110-Volt Interior Wall Recept (2 Gang)
  • Alpha Rubber Tread Plate Flooring
  • Upgrade to RV Door
  • 50 AMP Service Upgrade
  • 12-Volt Battery w/ Box (Int or Ext Mounted)
  • FORMICAH COUNTER TOPS W/HINGED L SHAPED
  • (1) 36" AMBER DIRECTIONAL LIGHT BAR

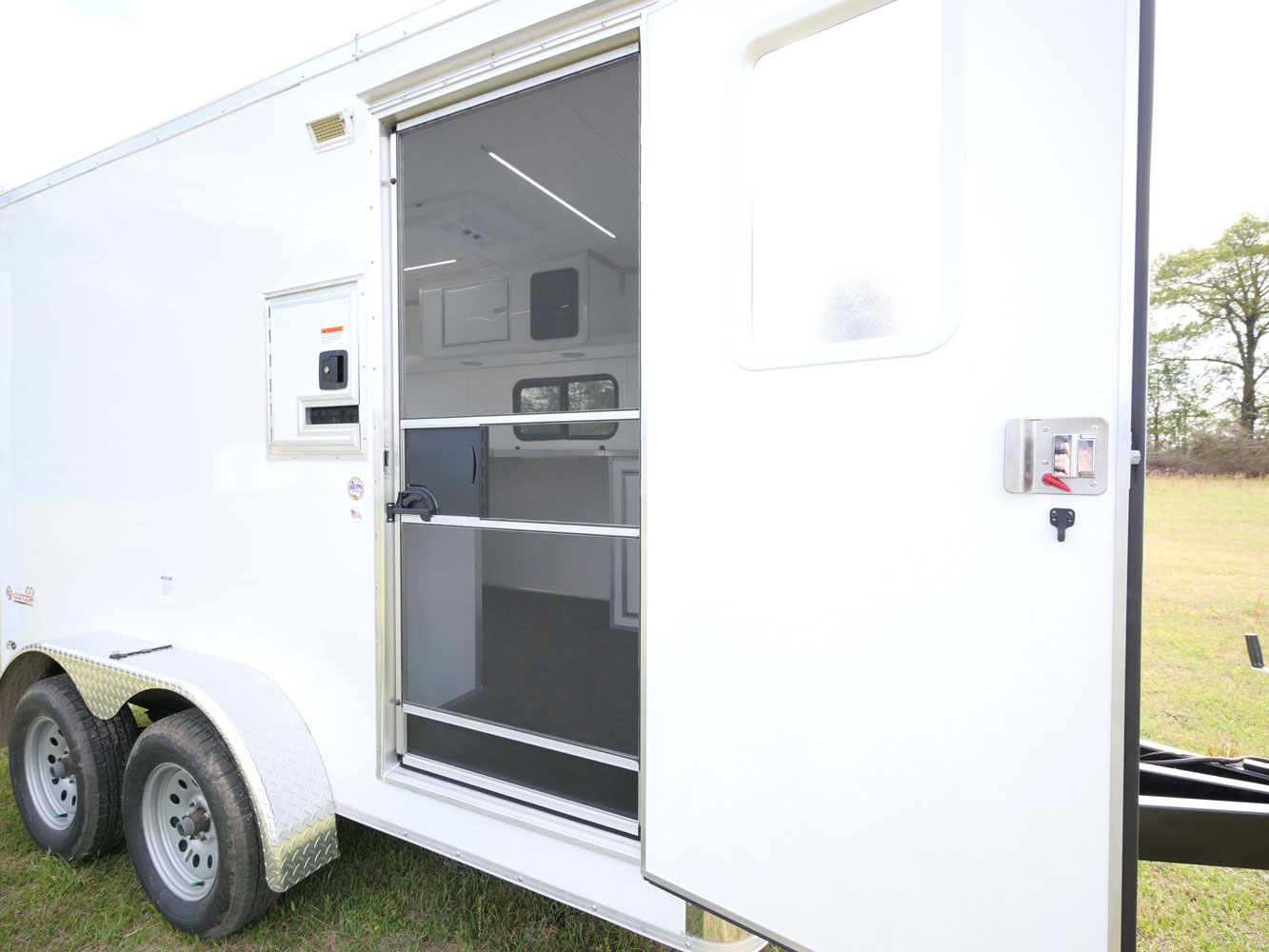

  • (2) SPLICING DOOR W/ FLUSHLOCK AND BRUSH GUARD
  • (2) LED SCENE LIGHTS
  • (1) 12V CUT OFF SWITCH
  • ALUMINUM PULL OUT STEP
  • FIXED ALUMINUM BUMPER COVERED IN ATP
  • Adjustable 2-5/16" Ball Coupler
  • Additional Floor Crossmembers (16" O/C)
  • Deluxe Scissor Jacks w/ Hand Crank (5,000 lb. Capacity)
  • Spare Tire Mt. (Interior Wall Mount; No Cover)
  • ST205/75R15/C Spare Tire w/ 5/Bolt Silver Wheel
  • Screwless Exterior
  • 30"x15" Horizontal Radius Window w/ Slider & Screen
  • Base and Overhead Combination
  • Additional Length - OH Cabinets
  • 4" Tube Frame to 6" I-Beam Upgrade
  • Additional Height 6"
  • (1) 12-Volt Interior Dome Light
  • (1) 12-Volt Interior Wall Switch
  • (2) GAS SHOCKS FOR DOORS
  • UPGRADE TO FORMICAH COUNTERTOPS ON BASE CAB FULL LENGTH OF TRAILER
  • (2) 22.5° DOWNSTART AXLES
