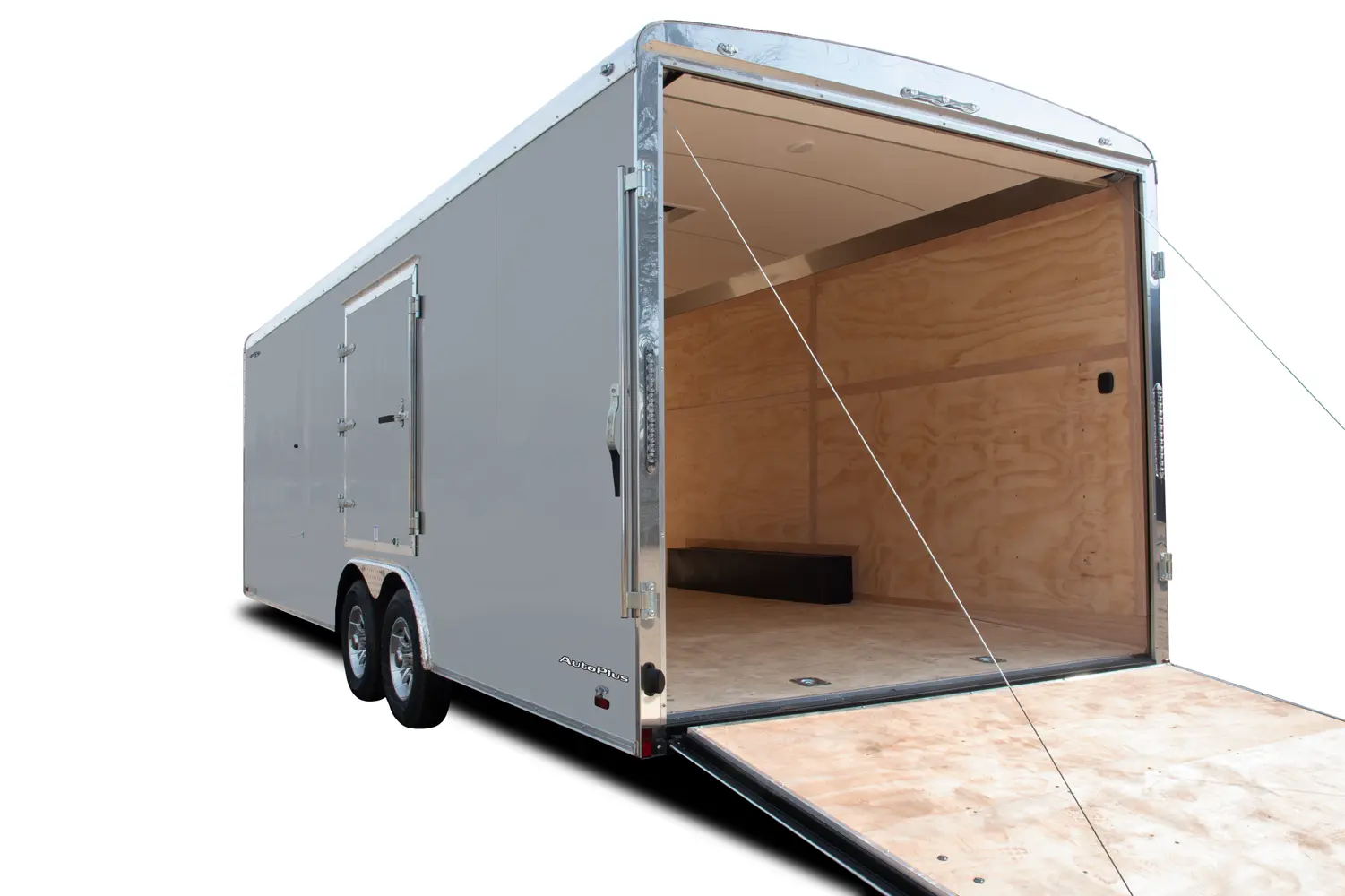

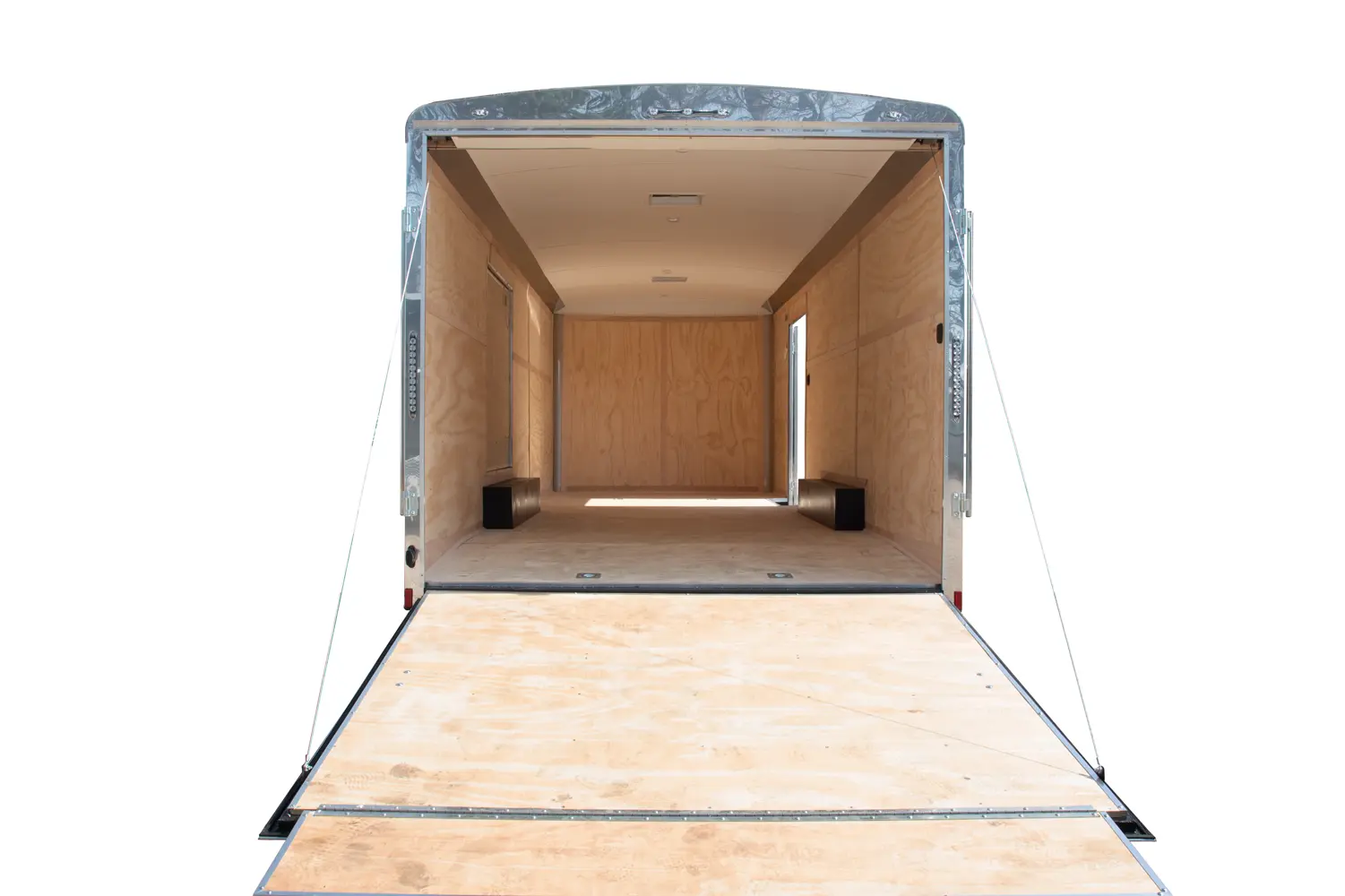

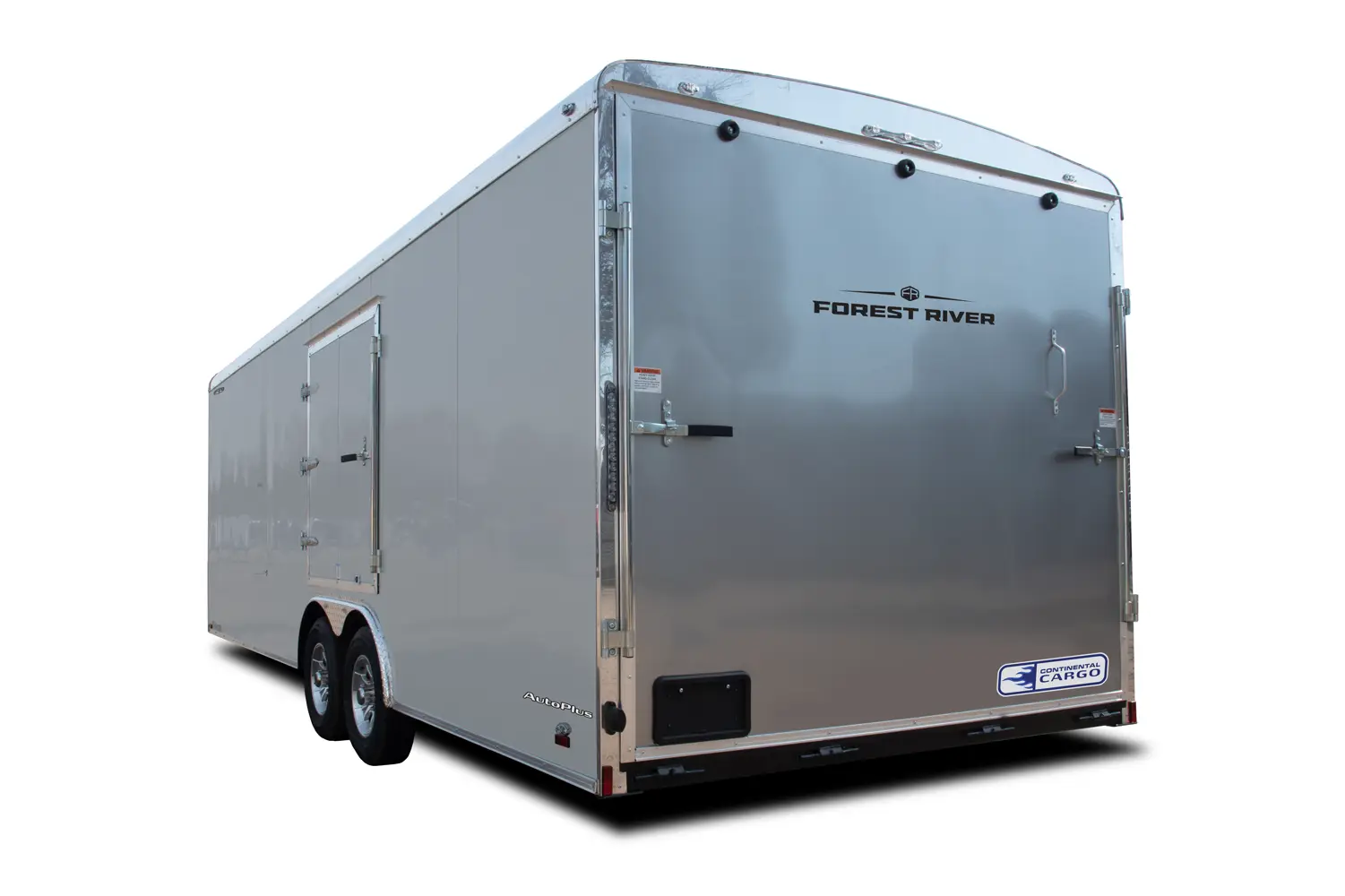

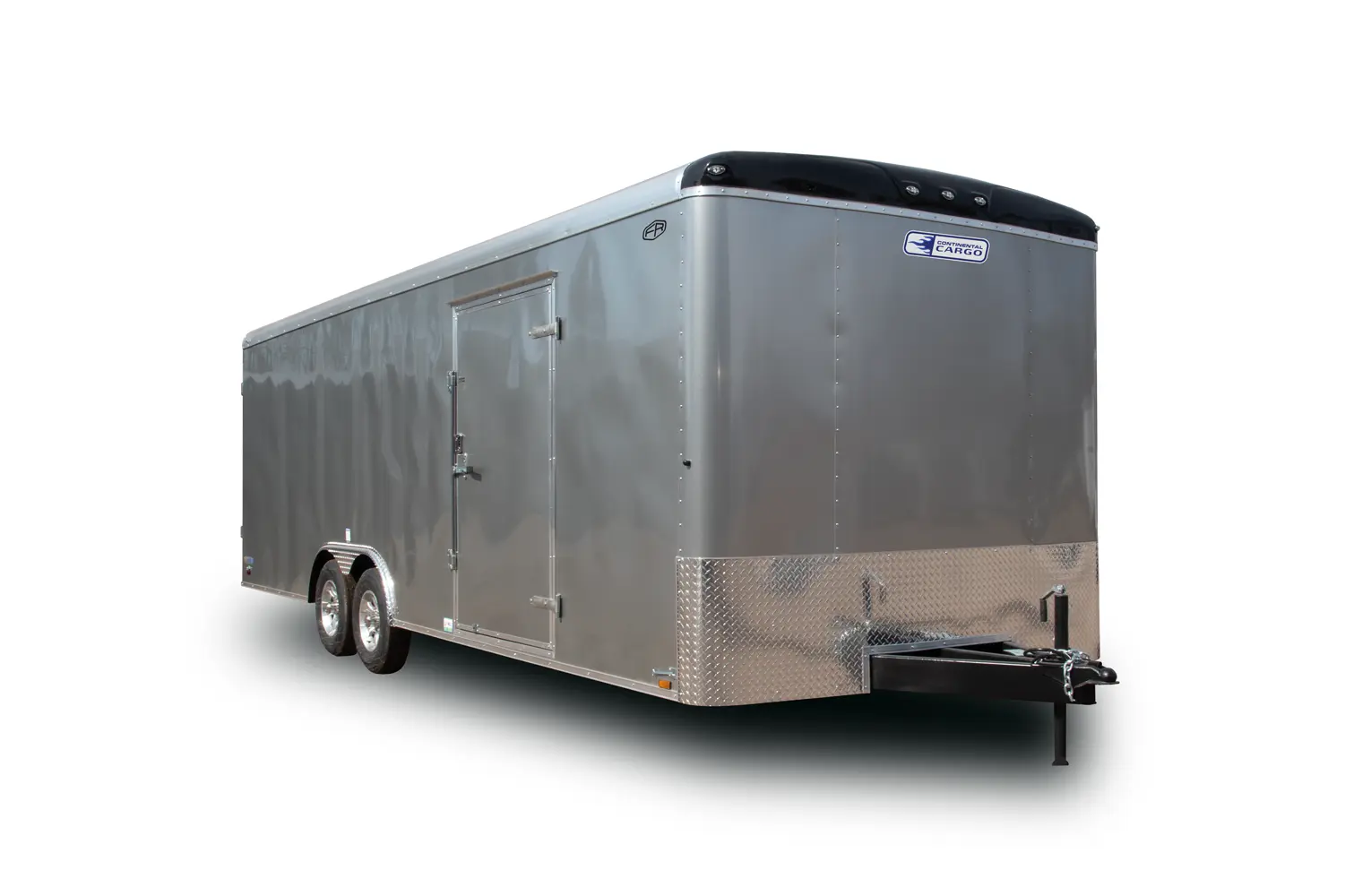

Auto Plus auto haulers range in size from a 8.5’ x 18’ tandem axle to a 8.5’ x 48’ triple axle model. Electric brakes are standard on all Auto Plus models. The standard payload capacities range from 3,460 to 6,750 lb. on tandem axle bumper pull models to 4,330 to 10,580 lb. on gooseneck models. A ramp door with no-show beavertail is standard on all Auto Plus auto haulers.

VIEW THE TOP REASONS TO BUY CONTINENTAL CARGO

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:AP8518TA2AP8520TA2AP8522TA2AP8524TA2AP8518TA3AP8520TA3AP8522TA3AP8524TA3AP8526TA3AP8528TA3AP8530TA3AP8532TA3APG/F8526TA3APG/F8528TA3APG/F8530TA3APG/F85532TA3APG/F8534TTA3APG/F8536TTA3APG/F8538TTA3APG/F8540TTA4APG/F8542TTA4APG/F8544TTA4APG/F8546TTA4APG/F8548TTA4
GVWR:7000 lb.7000 lb.7000 lb.7000 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.14700 lb.14700 lb.14700 lb.18000 lb.18000 lb.18000 lb.18000 lb.18000 lb.
Payload Capacity:4135 lb.3910 lb.3685 lb.3460 lb.6600 lb.6375 lb.6150 lb.5925 lb.5345 lb.5025 lb.4705 lb.4386 lb.4630 lb.4480 lb.4330 lb.4180 lb.8480 lb.8180 lb.7880 lb.10580 lb.10180 lb.9780 lb.9380 lb.8980 lb.
Exterior Length:21' 10"23' 10"25' 10"27' 10"21' 10"23' 10"25' 10"27' 10"29' 10"31' 10"33' 10"35' 10"21' 10"23' 10"25' 10"27' 10"34' 6"36' 6"38' 6"40' 6"42' 6"44' 6"46' 6"48' 6"
Exterior Width:8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"
Exterior Height:8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"9' 0"9' 0"9' 0"9' 0"9' 0"
Interior Length:18' 7"20' 7"22' 7"24' 7"18' 7"20' 7"22' 7"24' 7"26' 7"28' 7"30' 7"32' 7"Total Length: 26' 4"
Lower Deck: 18' 0"
Total Length: 28' 4"
Lower Deck: 20' 0"
Total Length: 30' 4"
Lower Deck: 22' 0"
Total Length: 32' 4"
Lower Deck: 24' 0"
Total Length: 34' 4"
Lower Deck: 26' 0"
Total Length: 36' 4"
Lower Deck: 28' 0"
Total Length: 38' 4"
Lower Deck: 30' 0"
Total Length: 40' 4"
Lower Deck: 32' 0"
Total Length: 42' 4"
Lower Deck: 34' 0"
Total Length: 44' 4"
Lower Deck: 36' 0"
Total Length: 46' 4"
Lower Deck: 38' 0"
Total Length: 48' 4"
Lower Deck: 40' 0"
Interior Width:Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Interior Height:6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 10"6' 10"6' 10"6' 10"6' 10"
Rear Door Type:RampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRamp
Rear Door Width:7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"
Rear Door Height:6' 2"6' 2"6' 2"6' 2"6' 2"6' 2"6' 2"6' 2"6' 6' 6' 6' 6' 6' 6' 6' 6' 6' 6' 6' 4"6' 4"6' 4"6' 4"6' 4"
Coupler Size:2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16" / 2" 2-5/16" / 2" 2-5/16" / 2" 2-5/16" / 2" 2-5/16" / 2" 2-5/16" / 2" 2-5/16" / 2" 2-5/16" / 2" 2-5/16" / 2" 2-5/16" / 2" 2-5/16" / 2" 2-5/16" / 2"
Curb Weight:2865 lb.3090 lb.3315 lb.3540 lb.3200 lb.3425 lb.3650 lb.3875 lb.4455 lb.4775 lb.5095 lb.5415 lb.5170 lb.5320 lb.5470 lb.5620 lb.6220 lb.6520 lb.6820 lb.7420 lb.7820 lb.8220 lb.8620 lb.9020 lb.
Hitch Weight:287 lb.309 lb.332 lb.354 lb.320 lb.343 lb.365 lb.388 lb.446 lb.478 lb.510 lb.542 lb.1034 lb.1064 lb.1094 lb.1124 lb.1244 lb.1304 lb.1364 lb.1484 lb.1564 lb.1644 lb.1724 lb.1804 lb.
Hitch Height:20"20"20"20"20"20"20"20"22"22"22"22"40"40"40"40"40"40"40"40"40"40"40"40"
Platform Height:18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"20"
Axle:2-3,5002-3,5002-3,5002-3,5002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2003-5,2003-5,2003-5,2003-6,0003-6,0003-6,0003-6,0003-6,000
Brakes:ElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectric
Tires:ST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST235/80R16/EST235/80R16/EST235/80R16/EST235/80R16/EST235/80R16/E
Wheels:5 Bolt5 Bolt5 Bolt5 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt 8 Bolt 8 Bolt 8 Bolt 8 Bolt 8 Bolt
Main Frame:6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam10" I-Beam8" I-Beam10" I-Beam10" I-Beam10" I-Beam10" I-Beam10" I-Beam
Floor:3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood
Walls:3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood

Features & Options

Print
  • 102" Wide Body Design

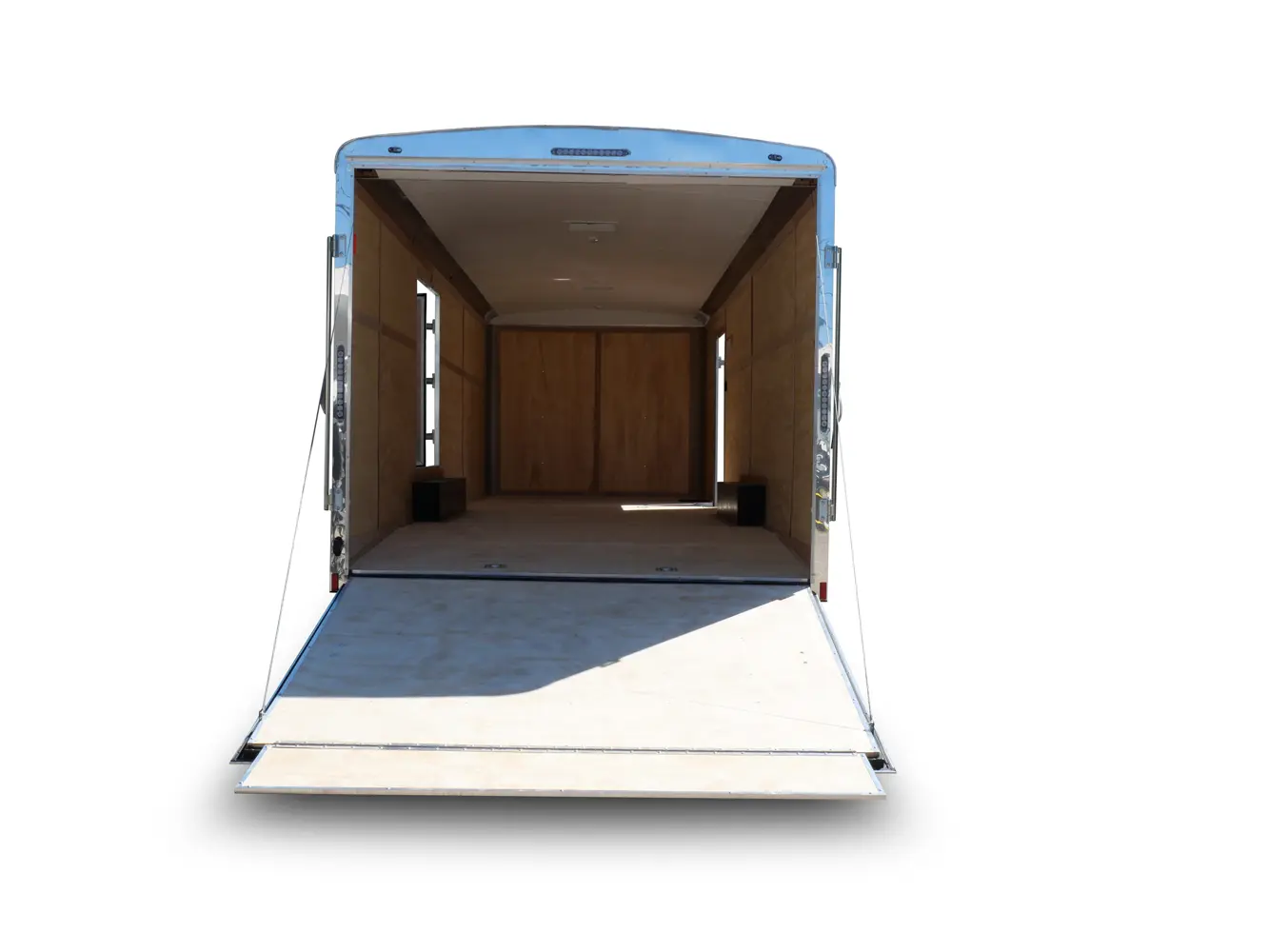

  • Ramp Door with Spring Assist
  • No-Show Beavertail

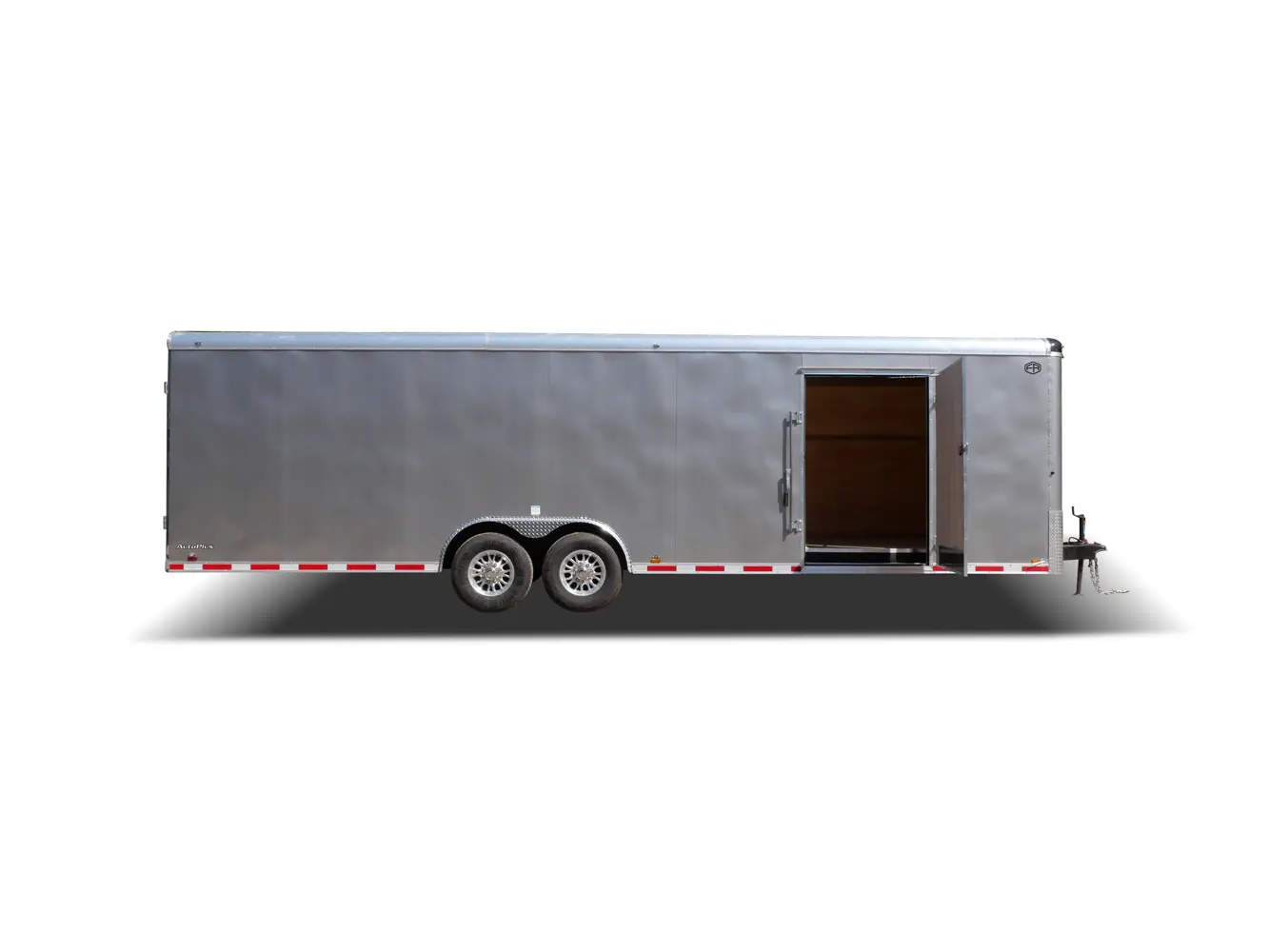

  • 48" Side Door with Steel Step
  • Flushlock on Side Door
  • Semi-Style Camlock Door Latches
  • Safety-Spring Chains on Side Door
  • Door Hold-Backs on All Doors
  • Torsion Wide-Track Axle
  • All-Wheel Electric Brakes withBreakaway
  • 12-Volt Breakaway Switch withBattery
  • E-Z Lube Hubs with Grease Caps
  • Aluminum Wheels
  • Chrome Center Caps
  • Radial Tires
  • Steel Sealed Sidewalls
  • 4 – LED Dome Lights
  • 2 – 12 Volt Switches
  • 2 – Roof Vents & 4 – 5,000lb. D-Rings
  • Aluminum Roof
  • .080 Mill-Finish Aluminum Top Wrap

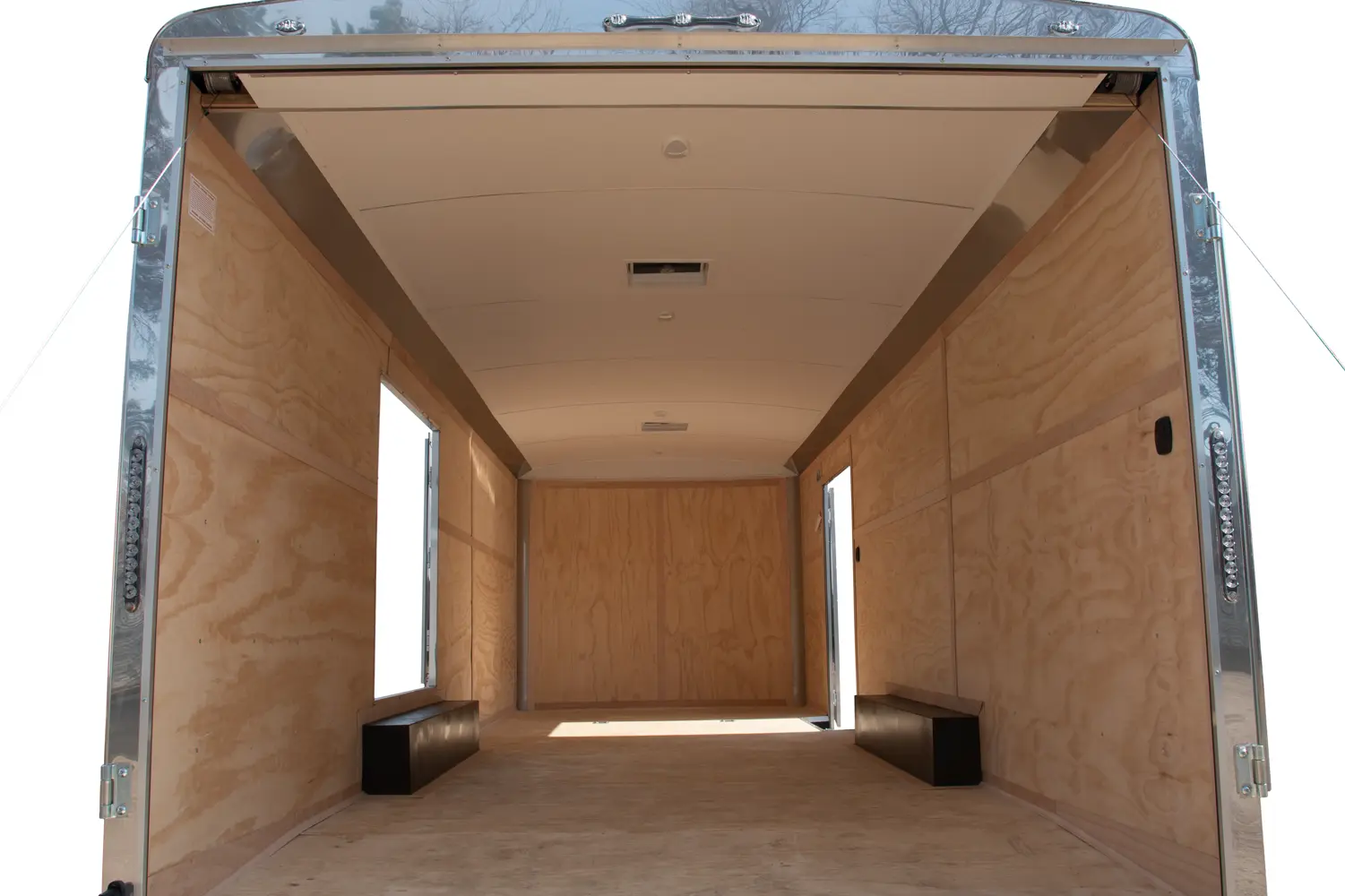

  • 3/8" Plywood Wall Liner with LauanTrim
  • White Vinyl Ceiling
  • Exterior ATP Fenders
  • TPO Radius Front Cap
  • DOT Approved Lighting
  • Clear Lens LED Clearance Lights
  • Clear Lens LED Strip Tail Lights
  • Molded License Plate Holder and Light
  • .030 Aluminum Exterior (Avail. in 14Colors)
  • Screwless Exterior Metal
  • Anodized Rear Hoop
  • 3/4" Plywood Floor
  • Urethane Coating on Tongue and RearMember
  • Z-Tech Undercoated Frame
  • Tongue Jack w/ Sand Pad
  • Welded Safety Chains
  • Full-Color Decals
  • Grease Zerks on Rear Ramp Hinges
  • 24" ATP Stoneguard
  • 110-Volt Package
  • All 110-Volt Packages Require a Finished Ceiling
  • (2) 4' Fluorescent Lights with (1) Wall Switch
  • (2) Interior Wall Recepts
  • Exterior Wall Recept with GFI
  • 15-Amp Motorbase Plug
  • 110-Volt Racer's Package
  • All 110-Volt Packages Require a Finished Ceiling
  • (5) 4' Fluorescent Lights with (1) Wall Switch
  • (2) 500-Watt Recessed Quartz Lights with (1) Wall Switch
  • (2) Interior Wall Recepts
  • Exterior Wall Recept with GFI
  • 30-Amp Breaker Panel with Lifeline and Cable Hatch
  • Aluminum Package
  • Aluminum Wheels
  • Bright-Dip Aluminum Front Corners
  • Brght-Dip Aluminum Rear Structure
  • 6" of Bright-Dip Aluminum Along the Bottom of Both Sides
  • Contractor Package
  • 16" O/C Roof
  • 16" O/C Floor Members
  • 60" Triple Tube Tongue
  • 3/4" Plywood Walls
  • (2) 2-Way Sidewall Vents (Aluminum)
  • (3) Aluminum Ladder Rack Sections
  • (2) 12V Quartz Loading Lights with Switch
  • Fuel Station Package
    (Requires 8" I-Beam Frame or Larger)
  • 27 Gallon Fuel Tank
  • Fuel Fill
  • Pumping Station
  • Timer Switch
  • Under Floor Storage
  • Runs on 12-Volt System
  • Generator Ready Package
  • 36" x 24" Vented Generator Door
  • Insulated Interior Generator Compartment
  • Carbon Monoxide Detector
  • Interior Package
  • White Vinyl Ceiling Liner
  • White Aluminum Wall Liner
  • Black and White Checkerboard Vinyl Flooring
  • Aluminum Treadplate on Ramp and Flap
  • Checker Floor Does not Include Upper Deck in Gooseneck/5th Wheel
  • Landscaper Package #1
  • (2) 2-Way Side Wall Vents (Aluminum)
  • (2) Non-Powered Roof Vents
  • 48" Side Door with Flushlock
  • 54" Extended Triple-Tube Tongue
  • 16" O/C Floor Upgrade
  • Rear Ramp Door with Spring Assist
  • (2) 12-Volt Dome Lights (Total of 4)
  • (1) Wall Switch (Total of 2)
  • Surface Wall Mount E-Track (1 Row on Each Side Wall)
  • Shelf Across Front of Trailer (24" Deep with 3" Lip)
  • Landscaper Package #2
  • (2) 2-Way Side Wall Vents (Aluminum)
  • (1) Non-Powered Roof Vent
  • 54" Extended Triple-Tube Tongue
  • 16" O/C Roof Upgrade
  • Rear Ramp Door with Spring Assist
  • (2) 12-Volt Dome Lights (Total of 4) with Additional Wall Switch
  • 16" O/C Floor Upgrade
  • Landscaper Packager #3
  • (2) 2-Way Side Wall Vents (Aluminum)
  • (1) Non-Powered Roof Vent (Total of 2)
  • 60" Extended Triple-Tube Tongue
  • 16" O/C Floor Upgrade
  • Reinforced Rear Ramp Door with Spring Assist
  • (2) 12-Volt Dome Lights (Total of 4) with Additional Wall Switch
  • Extra Grab Handle on Rear Ramp Door
  • 3/4" Plywood Kickplate on Interior Walls
  • Locking Hasps on Side and Rear Doors
  • 16" O/C Roof Upgrade
  • Surface Mount E-Track on Sidewalls, 1 Row per Wall
  • Super Stock Package
  • Adds All Items in the 110V Racer's Package
  • Adds All Items in the Aluminum Package
  • .040 Exterior Metal (White or Black)
  • Rubber Floor Covering Front 8' w/ ATP Rear and on Ramp
  • Double 24" RV Doors with Piano Hinges and Flush Lock
  • L-Shaped Base Cabinet with Overhead and Wardrobe
  • Glued Interior Aluminum Wall Panels
  • Freezer-Type Ramp Door Latches
  • Race Mate (4) Piece Accessory Pack
  • 36" x 24" Vented Generator Door
